Smart EV Charging Pile
Fast, Reliable & Intelligent Charging for Modern Electric Vehicles
Power up your electric vehicle with our advanced Smart Charging Pile — a high-performance EV charging solution designed for homes, apartments, commercial buildings, offices, parking stations, and public charging infrastructure.
With a powerful 7kW mainstream output, the charging system is compatible with over 99% of family-owned new energy vehicles, delivering safe, stable, and efficient charging every day.

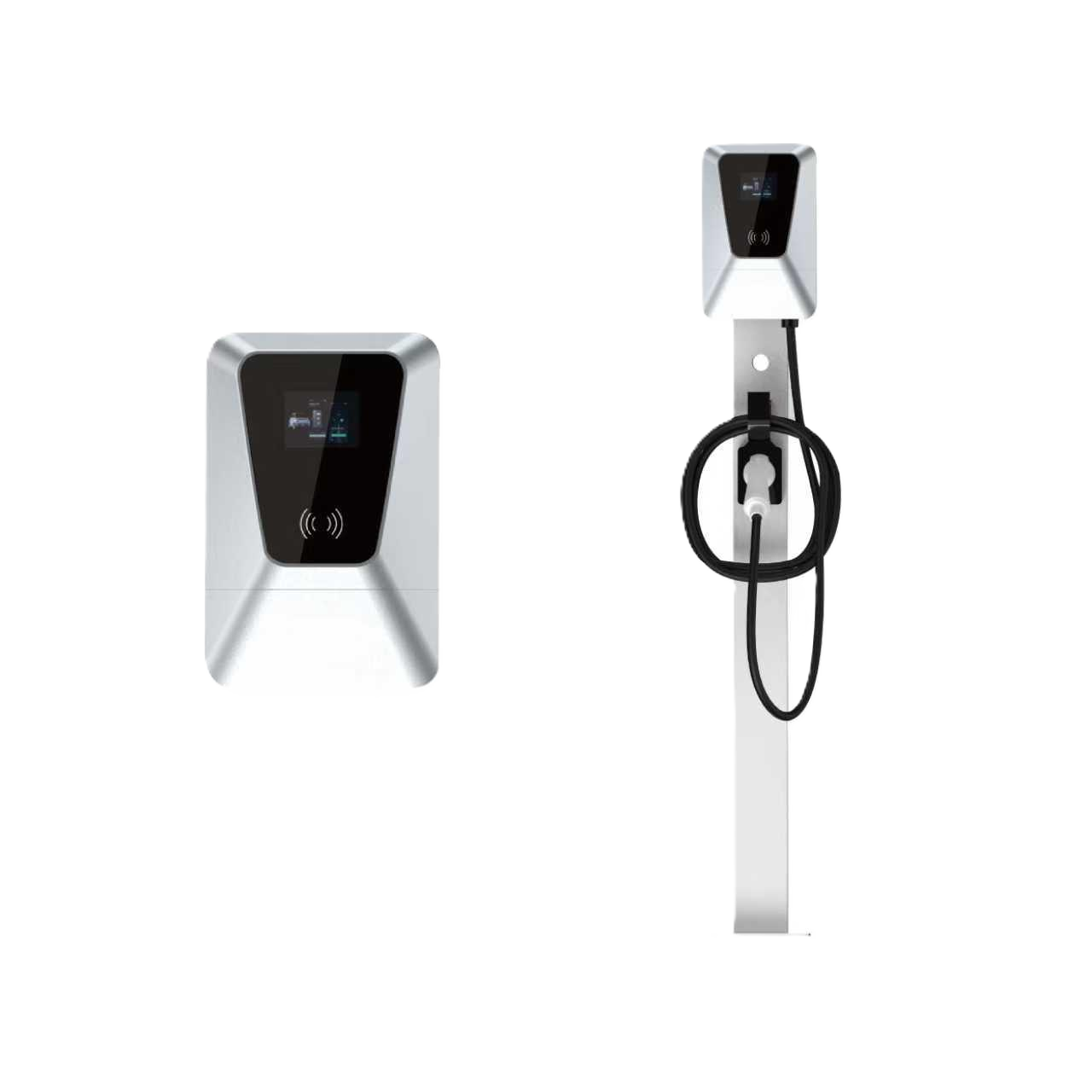

Smart EV Charging Pile Specs
| Specification | Details |
|---|---|
| Rated Power | 7KW |
| Input Current | 32A |
| Output Current | 32A |
| Communication Interface | 4G/Ethernet |
| Charging Gun Cable Length | 5M |
| Dimensions (W×D×H) | 210×95×320(mm) |
| Protection Rating | IP54 |
| Operating Ambient Temperature | -20°C ~ +55°C (Standard Version) |
| Protection Functions | Overvoltage, Overcurrent |
| Input Voltage | AC 220V ±10% |
| Output Voltage | AC 220V ±10% |
| Operating Frequency | 50±5HZ |
| Charging Mode | Single Gun Charging |
| Mounting Method | Wall-mounted / Station-mounted |
| Weight | <5kg |
| Cooling Method | Natural Cooling |
| Storage Temperature | -35°C ~ +65°C (Standard Version) |
| Station Dimensions (W×D×H) | 180×130×1357(mm) |

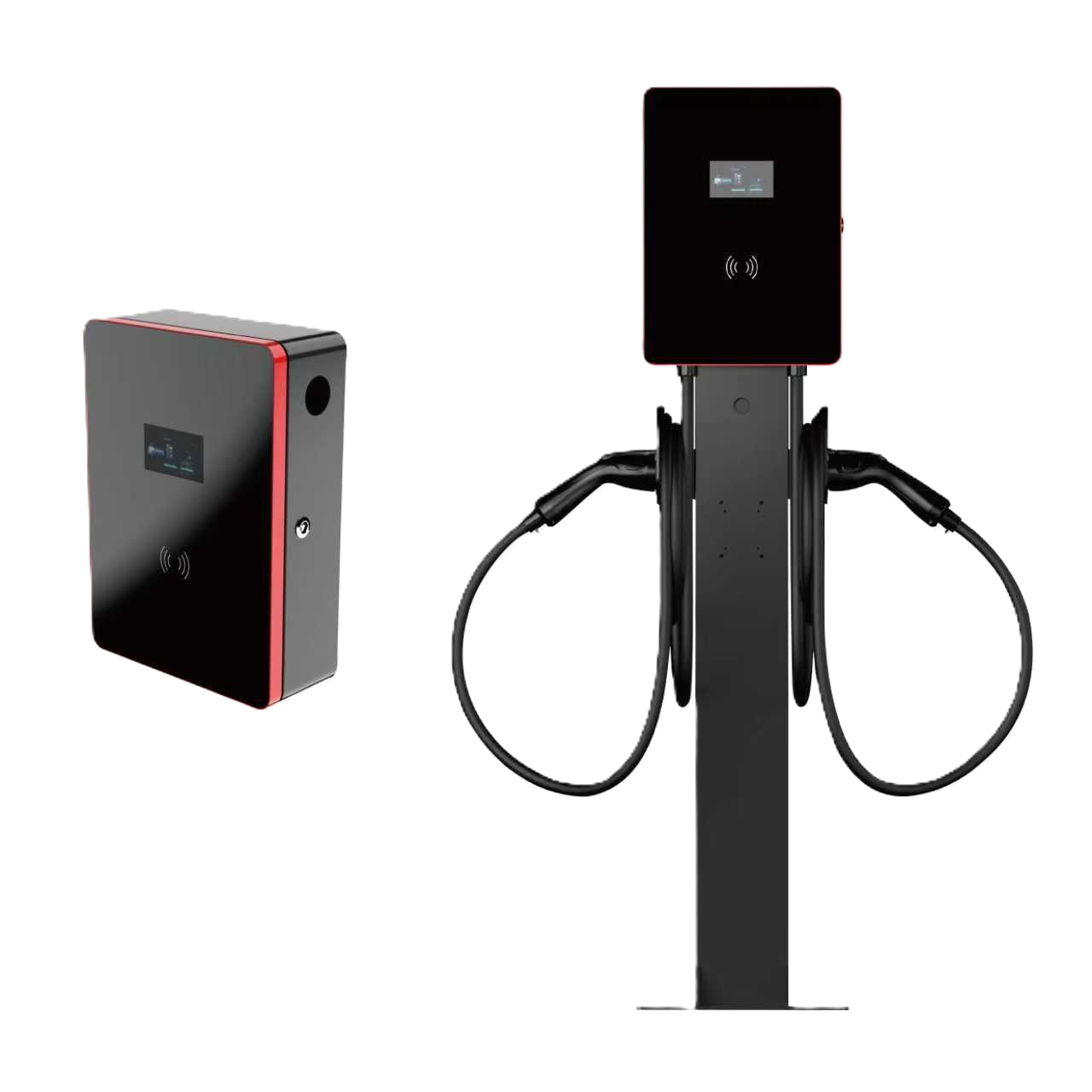

| Specification | Details |
|---|---|
| Rated Power | 14KW |
| Input Current | 32A × 2 |
| Output Current | 32A × 2 |
| Communication Interface | 4G/Ethernet |
| Charging Gun Cable Length | 5M |
| Dimensions (Width × Depth × Height) | 300 × 123 × 420(mm) |
| Protection Level | IP54 |
| Working Environment Temperature | -20°C to +55°C (Standard Version) |
| Protection Function | Overvoltage, Overcurrent |
| Input Voltage | AC 220V ±10% |
| Output Voltage | AC 220V ±10% |
| Working Frequency | 50±5HZ |
| Charging Mode | Single Gun Charging / Double Gun Charging |
| Fixed Method | Wall-mounted / Pillar |
| Weight | <12kg |
| Cooling Method | Natural Cooling |
| Storage Temperature | -35°C to +65°C (Standard Version) |

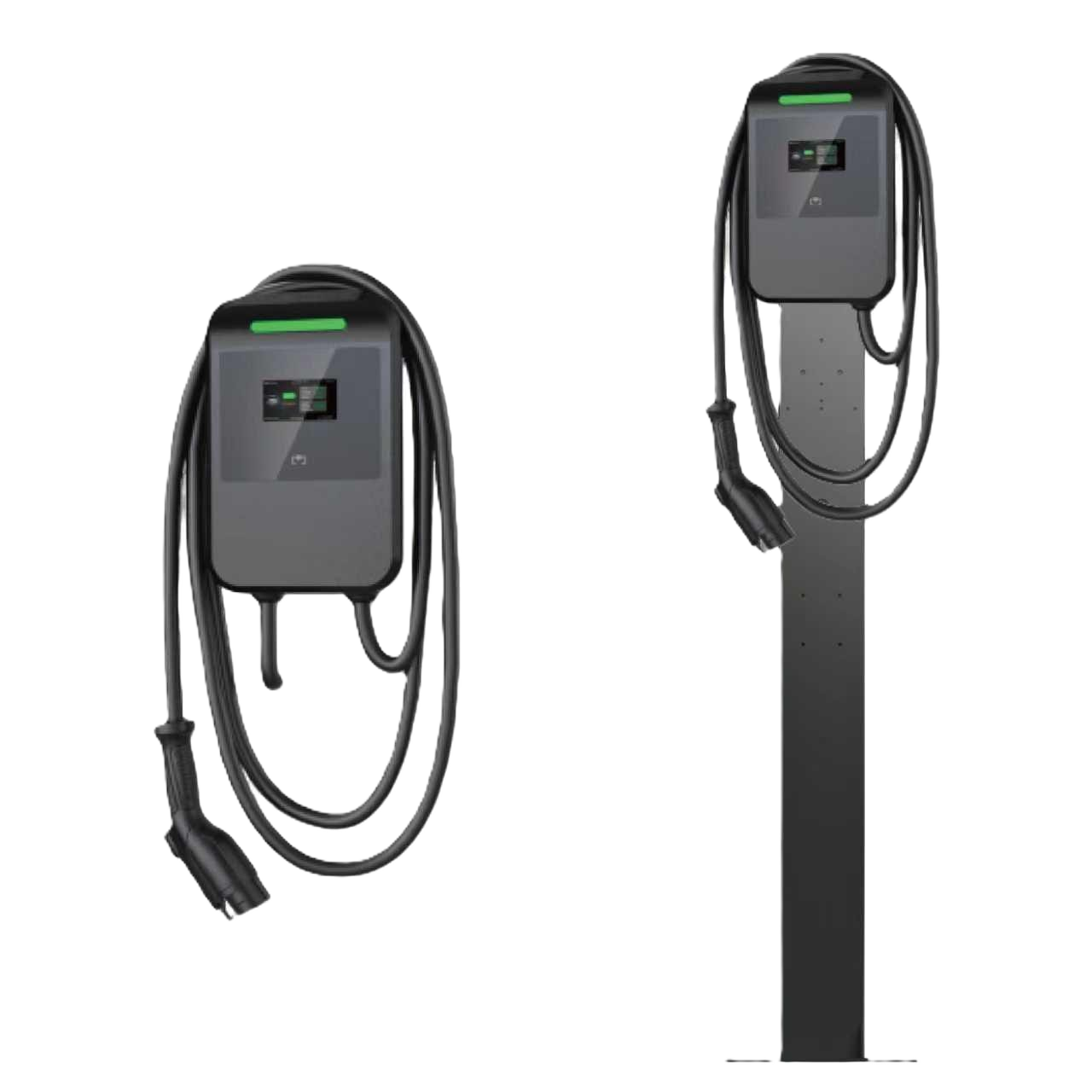

| Specification | Details |
|---|---|
| Rated Power | 21KW |
| Input Current | 32A |
| Output Current | 32A |
| Communication Interface | 4G/Ethernet |
| Charging Gun Cable Length | 5M |
| Dimensions (Width × Depth × Height) | 261 × 123.5 × 393(mm) |
| Protection Level | IP54 |
| Working Environment Temperature | -20°C to +55°C (Standard Version) |
| Protection Function | Overvoltage, Overcurrent |
| Input Voltage | AC 380V ±15% |
| Output Voltage | AC 380V ±15% |
| Working Frequency | 50±5HZ |
| Charging Mode | Single Gun Charging |
| Fixed Method | Wall-mounted / Pillar |
| Weight | <5kg |
| Cooling Method | Natural Cooling |
| Storage Temperature | -35°C to +65°C (Standard Version) |

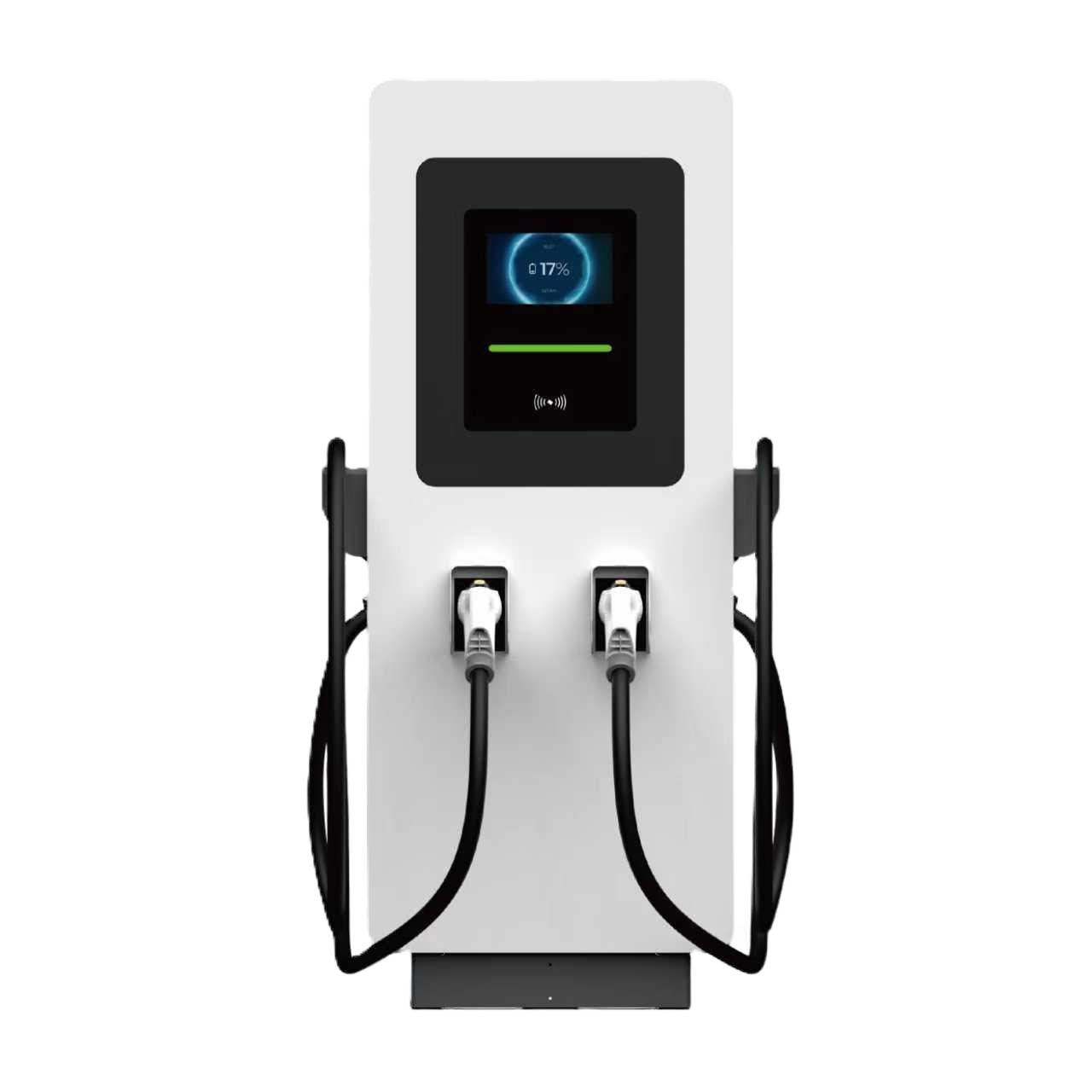

| Specification | Details |
|---|---|
| Rated Power | 120KW |
| Output Voltage | 200~750Vdc |
| Whole Pile Output Current Range | 5~300A |
| Power Factor | ≥0.99 |
| Power Distribution Mode | 1 fast, 1 slow / double fast, fast gun at full power at any setting |
| Screen Size | 7 inches |
| Dimensions (Width × Depth × Height) | 650 × 514 × 1650(mm) |
| Cooling Method | Air Cooling |
| Storage Temperature | -35°C to +65°C (Standard Version) |
| Input Voltage | AC 380V ±15% |
| Maximum Current Output of a Single Gun | 250A |
| Constant Power Range | 400~750Vdc |
| Maximum Efficiency | 95.2% |
| Network Interface | 4G/Ethernet |
| Charging Gun Cable Length | 5m × 2 |
| Protection Level | IP54 |
| Working Environment Temperature | -25°C to +55°C (Standard Version) |

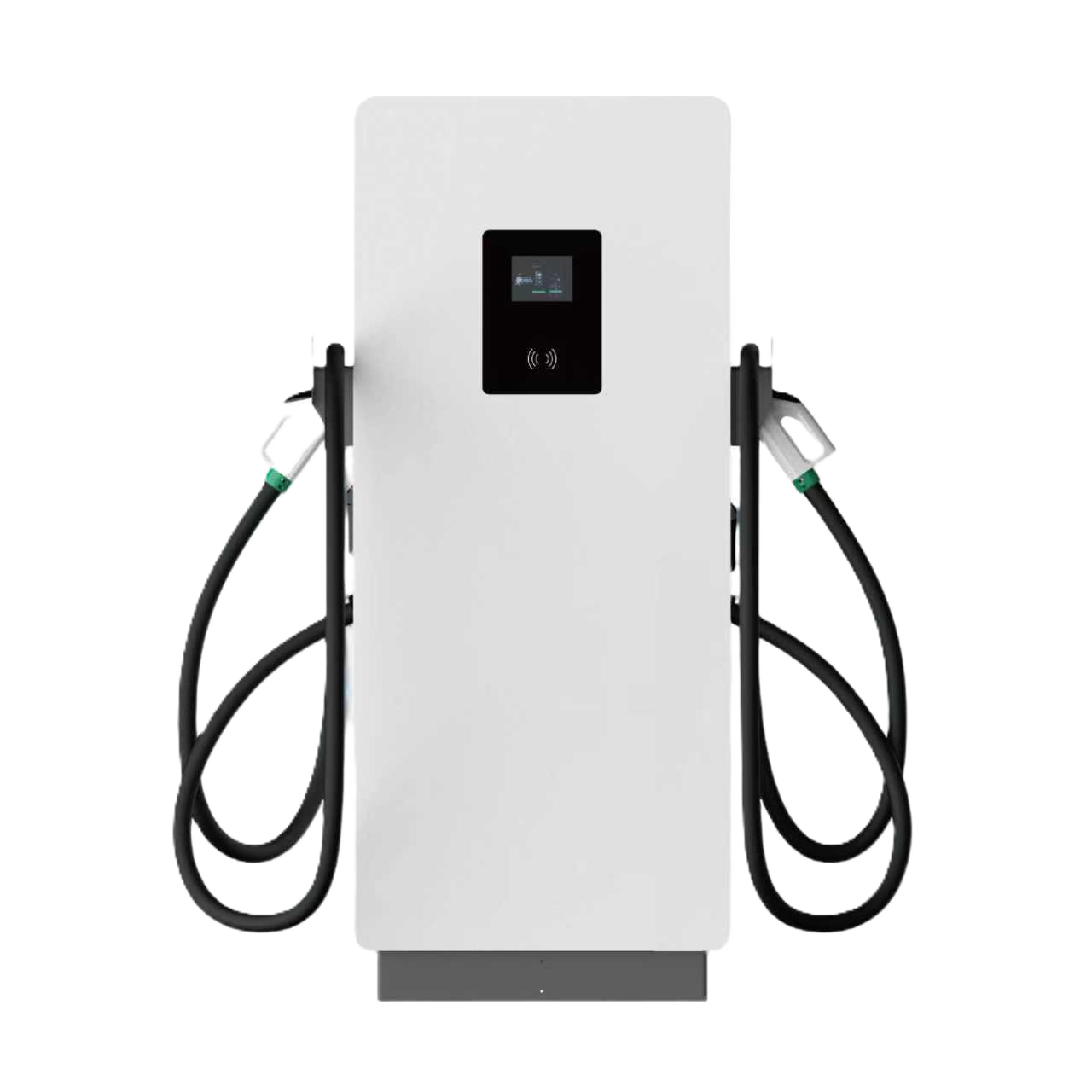

| Specification | Details |
|---|---|
| Rated Power | 240KW |
| Output Voltage | 200~1000Vdc |
| Whole Pile Output Current Range | 5~798A |
| Power Factor | ≥0.99 |
| Power Distribution Mode | Two fast chargers, dual-gun full power / can charge both guns simultaneously |
| Screen Size | 7 inches |
| Dimensions (Width × Depth × Height) | 780 × 620 × 1800(mm) |
| Cooling Method | Air Cooling |
| Storage Temperature | -35°C to +65°C (Standard Version) |
| Input Voltage | AC 380V ±15% |
| Maximum Current Output of a Single Gun | 250A |
| Constant Power Range | 300~1000Vdc |
| Maximum Efficiency | 95% |
| Network Interface | 4G/Ethernet |
| Charging Gun Cable Length | 7.5m × 2 |
| Protection Level | IP54 |
| Working Environment Temperature | -25°C to +55°C (Standard Version) |
Key Features
7kW - 240kW High-Speed Charging
Wide Vehicle Compatibility
Intelligent Charging Management
Safe & Reliable Operation
Modern & Compact Design
Durable Weather-Resistant Construction
User-Friendly Interface
7kW - 240kW High-Speed Charging
Provides fast and efficient charging performance, reducing vehicle downtime and improving convenience for daily use.
Wide Vehicle Compatibility
Designed to support most modern electric vehicles and plug-in hybrid models, ensuring seamless charging across multiple EV brands.
Intelligent Charging Management
Integrated smart control technology enables optimized charging performance, energy monitoring, scheduling, and protection management.
Safe & Reliable Operation
Built with multiple protection systems including:
- Over-voltage protection
- Over-current protection
- Short-circuit protection
- Leakage protection
- Temperature monitoring
Modern & Compact Design
Sleek, elegant, and space-saving design suitable for residential and commercial environments.
Durable Weather-Resistant Construction
Engineered for both indoor and outdoor installation with durable materials designed for long-term performance.
User-Friendly Interface
Features intelligent display indicators and simplified operation for easy charging management and real-time charging status visibility.
